Description

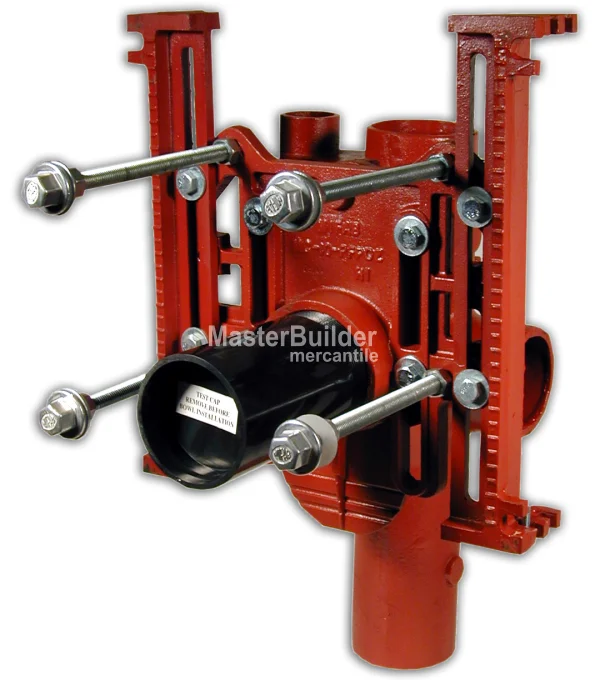

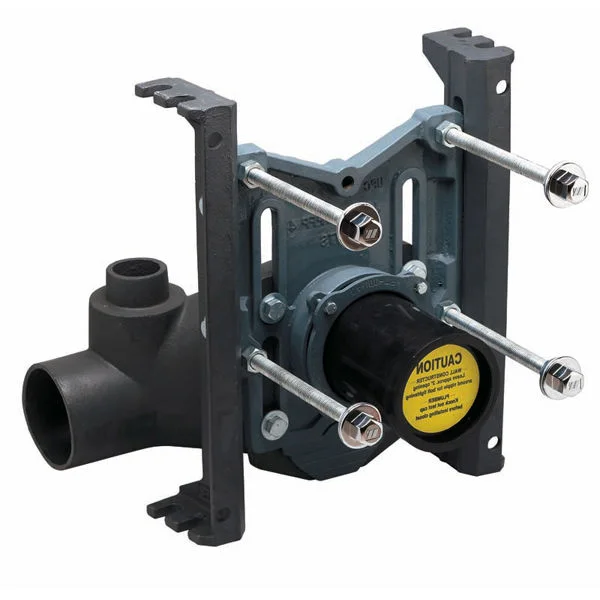

Zurn Z1201-NR4 High Performance Water Closet Carrier Wall Hung Toilet Carrier – Right Hand Inlet with Flow to Left, 4″ No Hub.
Notes:
-
Water / waste flows to right when seated on water closet.
Product Overview
The Zurn Z1201-NR4 EZCarry™ Water Closet Carrier is a heavy-duty in-wall carrier system designed to provide exceptional reliability and performance in commercial and institutional restrooms. Built with a right-hand inlet and flow directed to the left, this carrier ensures superior waste line propulsion, reducing clogs and keeping systems efficient even in low-flow environments.
Engineered for strength and convenience, the Z1201-NR4 supports up to 500 lbs static load, while its EZ-SET™ coupling option and factory-assembled components streamline installation. Designed to fit most major water closet manufacturers, this system is a versatile and hygienic solution for high-traffic facilities.
Features & Benefits
-
Unmatched Waste Propulsion – Propels waste up to 3x farther for fewer clogs in low-flow systems.
-
Enhanced Load Capacity – Supports loads up to 500 lbs, ensuring long-term durability.
-
Streamlined Installation – Pre-assembled components and lighter construction save time and labor.
-
EZ-SET™ Coupling Option – Patent-pending design allows front-access testing and simple adjustments.
-
Adjustable Design – Universal feet preset at 5-1/2″ rough-in height cut down adjustment time.
-
Sanitary & Low Maintenance – Wall-mounted design reduces mess and makes public restrooms more hygienic.
-
Built to Last – Corrosion-resistant materials and bonded gaskets improve service life.
Specifications
-
Model: Z1201-NR4 EZCarry™
-
System Type: Horizontal siphon jet water closet carrier with hydro-mechanically optimized flow
-
Main Fitting: Dura-Coated cast iron with 4″ no-hub connection and extended 2″ vent
-
Adjustable Features: Gasketed faceplate, heavy-duty anchor tie-down, integral test cap
-
Support Base: Pre-fabricated slotted foot supports with top anchoring
-
Gaskets: Bonded Neo-Seal gasket for secure sealing
-
Compliance: ASME A112.6.1M standards, 500 lbs static load rating
Installation Tips
-
Verify inlet orientation: the Z1201-NR4 has a right-hand inlet with flow to the left.
-
Position the universal feet at the preset 5-1/2″ rough-in height for quick setup.
-
Use the EZ-SET™ coupling for front-access testing and adjustments.
-
Anchor securely using top-mounted supports and heavy-duty rear tie-downs.
-
Always follow local plumbing codes for installation and testing requirements.
FAQs
Q: What makes the EZCarry™ system different?
It features advanced flow design that propels waste farther, minimizing clogging in low-flow restrooms.
Q: Can this carrier fit all water closets?
Yes, it is designed to be compatible with most major water closet manufacturers.
Q: What is the load capacity?
It is rated for up to 500 lbs static load, ensuring reliable support in commercial use.
Q: Is this model right or left inlet?
The Z1201-NR4 has a right-hand inlet, flow directed left. Other models in the Z1201-N series cover left-hand and double inlets.
Q: Does it meet standards compliance?
Yes, it meets ASME A112.6.1M standards and is engineered for commercial-grade durability.
