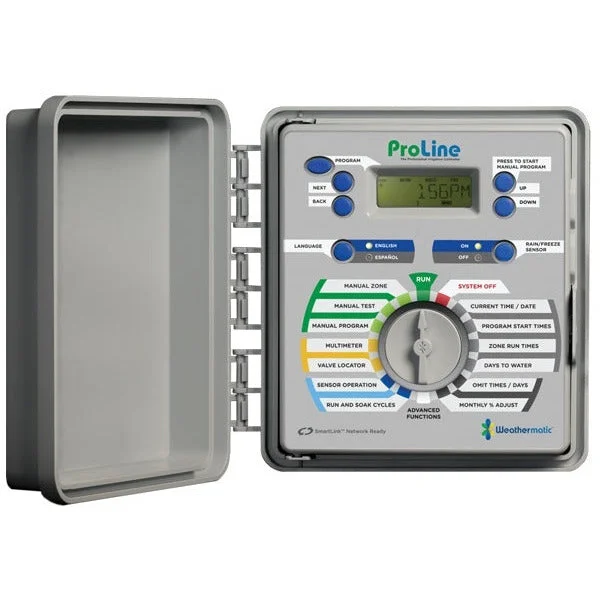

Proline 1600 Controller

Description

The ProLine? controller performs timed watering and is ready for options like rain and freeze sensors, SLRC remote control and SmartWire 2-Wire installation (models PL1600i and PL1600 only). ProLine? controllers can utilize the SLW series weather stations for Rain and Freeze shutdown. This means that you can take advantage of differentiating between Rain and Freeze events, unlike standard sensors on the market. Another powerful feature is the ability to extend a Rain shutdown event beyond the short time the Rain sensor is actually wet, saving even more water.

PROFESSIONAL FEATURES

• 4 programs: A, B, C; program D can operate concurrently
• 8 start times per program
• Indoor/Outdoor Rated
• English/Spanish
• Zone run times settable from 1 min. to 9 hrs. 55 min.
• Rain/Freeze sensing on/off button with Tri-Color LED indicator
• Rain delay of 1 – 7 days
• RFS5 Rain/Freeze Sensor rain delay programmable from 0 – 99 hours
• Seasonal % adjust by program, by month
• Omit time of day window, day(s) of week, and up to 7 calendar dates
• Programmable zone-to-zone delay 1 min. – 3 hrs.
• Watering days: custom days of the week, odd/even, or interval days
• Run/Soak cycles by program
• Large backlit LCD display
• Non-volatile memory – with no battery required
• Internal 120VAC/230VAC transformer with pre-installed 6?? line cord

MANUAL OPERATION

• Manual test runs each zone with zone run times from 10 sec. – 10 min.
• Manual zone operation of a single zone (1 min. to 9 hrs. 55 min.)
• Push button manual start of a program from control panel

ON-SITE DIAGNOSTIC/TROUBLESHOOTING FEATURES

• Fault review displays all faults, including open and shorted zones
• Test function using on-board multi-meter
• Built-in valve locator
• Backtrack Stored Program?

ADDITIONAL FEATURES

• Zone-to-zone delay
• Master valve timing sequence with zone valve programmable
• Master valve/pump start operation assignable On/Off by zone
• Clear program function
• Clear All function
• Grow-In Program

Product Specifications

• Dimensions: 9-1/8″ W x 10 «” H x 4″ D (23,2 cm x 25,7 cm x 10,2 cm)
• Input: 120VAC/60Hz @ 400mA for 3 valves
• Output: 28VAC 1.0A maximum
• Fuse: 1.0A, slow blow
