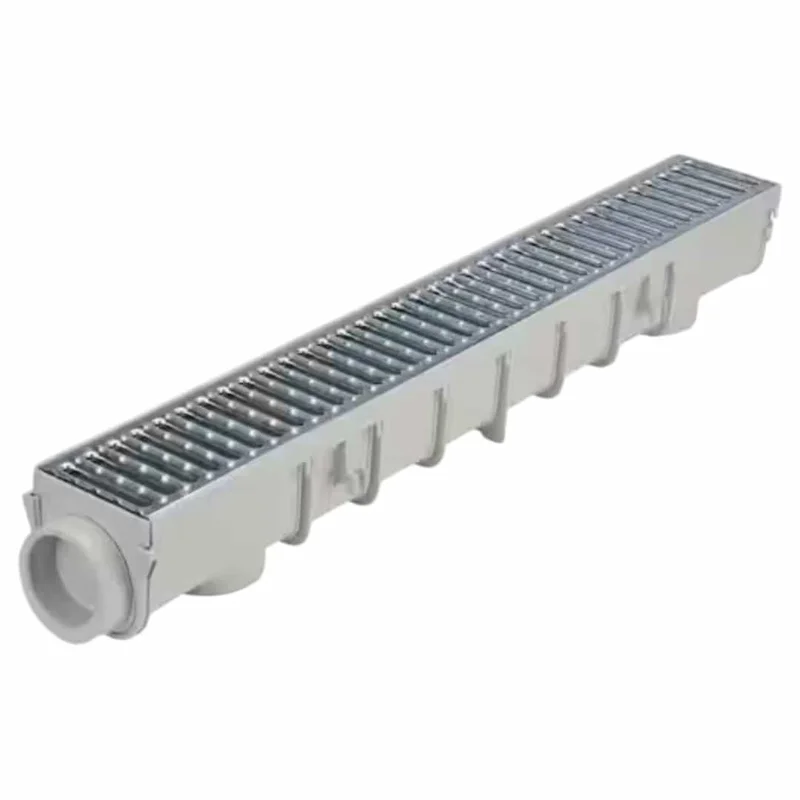

Effectively manage surface water and prevent property damage with the 5 in. Pro Series Channel Drain, Deep Profile. This durable modular drain system captures moderate flows from driveways, patios, walkways, courtyards, and sports facilities, directing water efficiently to drain pipes. The kit includes a 4-3/4 in. deep polypropylene channel, galvanized steel grates, end cap/outlet, and an additional end cap. Channels snap together using interlocking joints and can be cut in 4 in. increments with built-in saw guides. Multiple outlet options, including integrated bottom and side knockouts, provide flexible drainage configurations. Designed for durability and performance, this channel drain is a reliable alternative to traditional concrete systems.
- Efficient water management: Prevents mildew, concrete staining, and structural damage by capturing and directing surface water to downstream drain pipes
- Moderate flow capacity: Ideal for driveways, patios, walkways, courtyards, and sports surfaces
- Modular and customizable: Channels connect via interlocking joints; can be cut to size in 4 in. increments; multiple outlet options per section
- High flow rate: 19 sq. in. open surface per linear foot; 59 GPM per ft.
- Durable construction: Deep profile polypropylene channels with UV inhibitors; galvanized steel grates for strength and long-term performance
- Load rating: NDS Class B (up to 175 psi); suitable for medium-duty traffic, autos, and light trucks <20 mph; ADA compliant
- Easy maintenance: Removable grates allow quick debris cleaning
- Flexible installation: Additional channels and fittings can create longer runs or curved layouts; compatible with pop-up drainage emitters, dry wells, and gravel-free French drain systems
Specifications
| Max. Compatible Pipe Size (In.) | 5 in. |
| Min. Compatible Pipe Size (In.) | 5 in. |
| Product Depth (in.) | 39.75 in. |
| Product Length (in.) | 40 in. |
| Product Width (in.) | 5.5 in. |
| Color/Finish | Galvanized Steel |
| Compatible Area of Use | Driveway, Patio, Walkways, Yard |
| Material | Stainless Steel |
| Maximum Working Temperature (F) | 140°F |
| Minimum working temperature (F) | 33°F |
| Pack Size | 1 |
| Pipe or Fitting Product Type | Accessory |
| Product Weight (lb.) | 8.11 lb. |
| Returnable | 30-Day |
| Brand | NDS |
| GTIN | 052063058207 |
| Size | 5 in. |
