About This Product

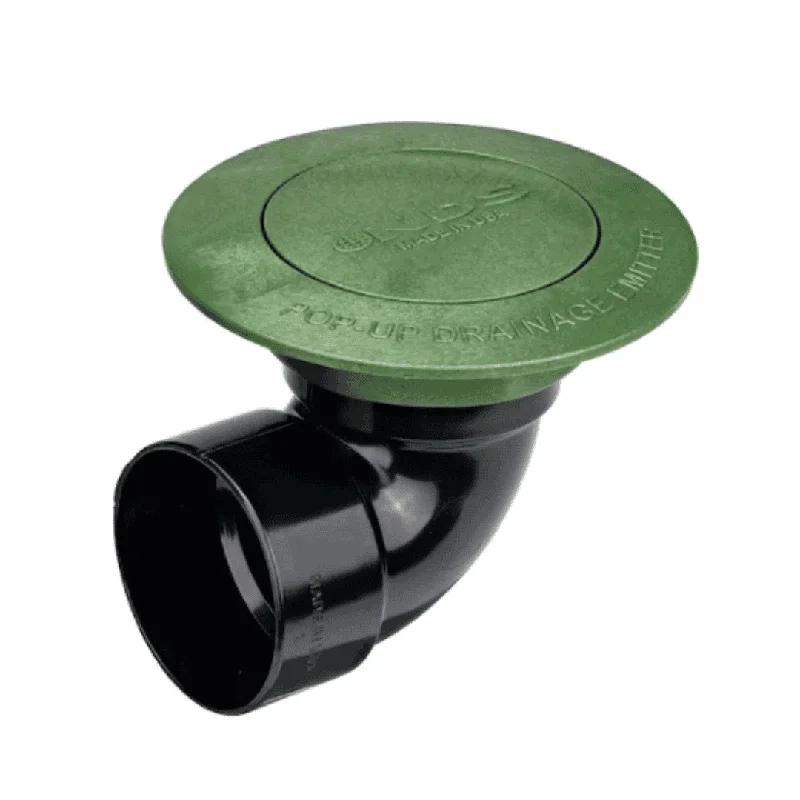

This pop-up drainage emitter with elbow helps move collected water away from structures, erosion-prone landscapes, and poor drainage areas. It connects to 3 in. sewer and drain pipe or 3 in. triple-wall pipe, creating a downstream discharge point for stormwater runoff. As water pressure builds, the cap rises up to 1 in. to release water at up to 56 GPM, then closes as the flow slows. When not in use, the closed cap helps keep debris and rodents out of the drainage system. Its flat profile blends into the landscape and helps reduce trip hazards, while the elbow’s weep hole drains remaining water from the pipe to help prevent stagnation or freezing in cold weather.
Highlights
- Provides a downstream release point for water collected upstream
- Install at the lowest point in the drainage system away from buildings and poor drainage areas
- Elbow connects to 3 in. sewer and drain pipe and 3 in. triple-wall pipe
- Can connect to other pipe types with proper adapters
- Releases collected water up to 56 GPM
- Supports pedestrian traffic, including lawn tractors, when properly installed
- Cap pops up as high as 1 in. when water pressure builds and closes as flow decreases
- Closed cap helps keep debris and rodents out of the drain when not in use
- Flange design helps prevent grass from growing over the cover
- Small weep hole in the elbow drains water left in the pipe to help prevent stagnation or freezing
- Flat profile helps reduce trip hazards and keeps the emitter flush with the ground when closed
- Rounded interior edges help reduce clogging
- Internal ribs add strength and durability
- Works as part of a complete drainage system to release stormwater runoff and standing water
- Position cover at ground level and connect elbow to 3 in. pipe underground
- Includes 1 pop-up drainage emitter with attached elbow
- Cap and cover are made from high-density polyethylene
- Elbow is made from PVC
- Use a compatible adapter to connect with 3 in. and 4 in. single-wall corrugated pipe or 4 in. schedule 40 pipe
- Multiple pop-up emitters can be used for larger drainage needs
- Can be used with catch basin drains, low-profile adapters, channel drains, trench drains, dry wells, and gravel-free French drain systems
Specifications
| Diameter (in.) | 5.94 in. |
| Max. Compatible Pipe Size (In.) | 3 in. |
| Min. Compatible Pipe Size (In.) | 3 in. |
| Product Height (in.) | 5.75 in. |
| Material | Plastic |
| Pack Size | 1 |
| Pipe or Fitting Product Type | Accessory |
| Product Weight (lb.) | .6 lb. |
| Returnable | 30-Day |
| Brand | NDS |
| GTIN | 052063322001 |
| Size | 3 in. |
