Description
[shortdesc]
| Water Capacity | 87 gpm |
| Voltage | 115V |
| Horse Power | 1HP |
| MPN | ST2047 |
[/shortdesc]
Product

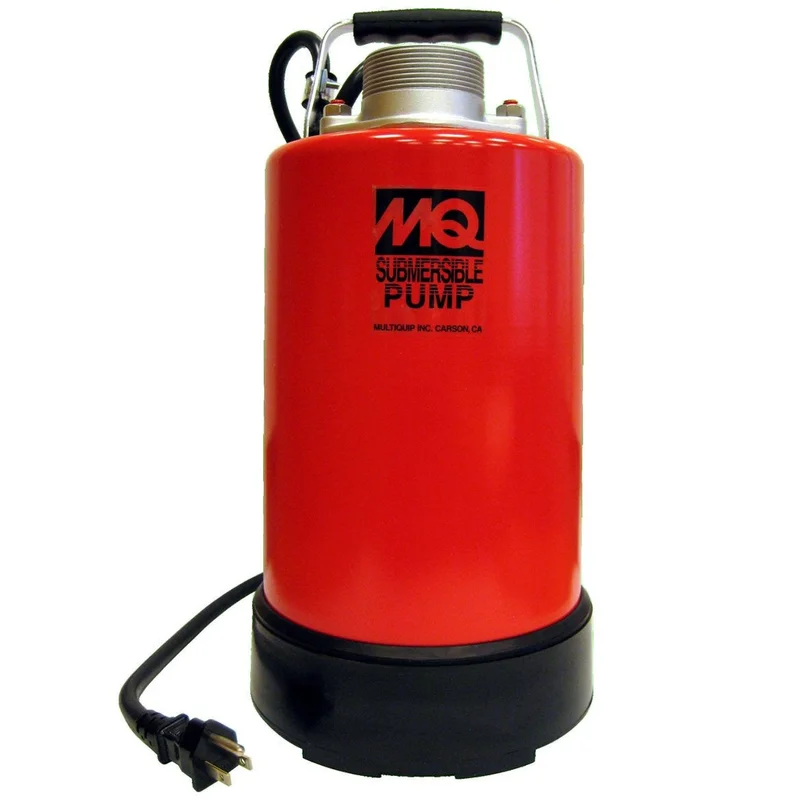

The Multiquip ST2047 is a robust and efficient submersible centrifugal pump designed for dewatering tasks in confined and open areas. Featuring a 2-inch discharge and a powerful flow rate of 87 GPM with a total head of 47 feet, it is suitable for contractors, municipalities, utility services, and homeowners. Its rugged cast aluminum housing ensures optimal durability, while the internal thermal overload protection and dual mechanical shaft seals provide reliable performance. Equipped with a 50-foot power cord, the ST2047 ensures easy access and dependable operation in demanding applications.
Top Features
- High Flow Performance: Pumps up to 87 GPM with a total head of 47 feet.
- Durable Construction: Rugged cast aluminum housing and cast iron/steel motor casing for heat dissipation.
- Reliable Operation: Built-in thermal overload protection and dual oil-filled mechanical seals.
- User-Friendly Design: Includes a 50-foot molded power cord with strain relief for extended reach.
- Versatile Applications: Dewaters flat surfaces down to 1-inch levels and operates in liquid up to 120°F.
| Category | Details |
|---|---|
| Model | ST2047 |
| Type | Submersible Centrifugal Pump |
| Maximum Flow Rate | 87 GPM (319 LPM) |
| Total Head | 47 ft (14.3 m) |
| Maximum Solid Intake | None |
| Maximum Liquid Temperature | 120°F (49°C) |
| Minimum Water Depth | 1 inch |
| Impeller Type | Neoprene Rubber over Cast Iron |
| Discharge Port | 2” NPT Female |
| Seals | Dual Shaft Mechanical Oil-Filled Seals |
| Construction Material | Rugged Cast Aluminum Housing |
| Power | 1 HP (0.75 kW) |
| Voltage | 115V, Single Phase |
| Starting Amperage | 30 A |
| Running Amperage | 9.8 A |
| Cable Length | 50 ft (15.2 m) |
| Pump Diameter | 7.4 in (188 mm) |
| Overall Height | 15.4 in (391 mm) |
| Operating Weight | 33 lbs (15 kg) |
===
Info & Guides
| User Manual | Download |
| Electric_Submersible_Pumps_Brochure | Download |
