About This Product

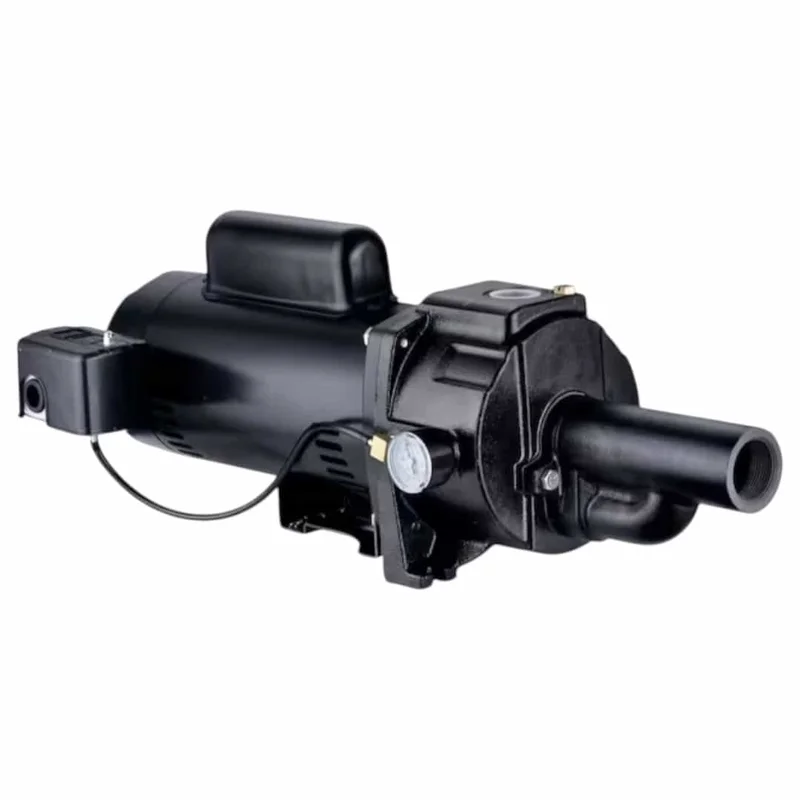

This convertible well pump is engineered for flexibility and efficiency in supplying fresh water from wells. Compatible with both single-pipe wells (0–25 ft. depth) and two-pipe wells (26–60 ft. depth), it includes a venturi and ejector kit for optimal performance in either configuration. The 1 HP motor delivers strong suction and high flow rates, making it ideal for irrigation, lawn sprinklers, and general water supply needs in residential or agricultural settings. The dual-voltage motor is factory-set at 230V and features thermal overload protection for safe operation. A built-in automatic pressure switch ensures consistent water delivery based on demand.
Highlights
- Convertible pump works with single-pipe (up to 25 ft.) or two-pipe wells (up to 60 ft.)
- 1 HP high-efficiency motor provides strong suction and reliable water delivery
- Dual-voltage design operates on 115V or 230V (factory set to 230V)
- Automatic 30/50 pressure switch turns pump on at 30 PSI and off at 50 PSI
- Built-in thermal overload protection prevents motor damage from overheating
- Durable cast iron volute housing offers long-lasting performance in demanding conditions
- UL Listed for safety and compliance
- Ideal for gardens, lawns, irrigation systems, or farm water supply
Specifications
| Product Depth (in.) | 25 in. |
| Product Height (in.) | 12 in. |
| Product Width (in.) | 14 in. |
| Amperage (A) | 14 A |
| Cord Length (ft.) | 0 ft. |
| Discharge Flow 0 ft. @ 40 PSI (gallons/hour) | 1300 GPH |
| Discharge Flow 0 ft. @ 40 PSI (gallons/min) | 22 GPM |
| Discharge Flow 25 ft. @ 40 PSI (gallons/hour) | 1250 GPH |
| Discharge Flow 25 ft. @ 40 PSI (gallons/min) | 21 GPM |
| Features | Corrosion Resistant |
| Head Pressure (ft.) | 183 ft. |
| Housing Material | Cast-Iron |
| Impeller Material | plastic |
| Included | No Additional Items Included |
| Inlet Connection | Threaded female |
| Jet Pump Product Type | Convertible |
| Maximum Horsepower (HP) | 1 HP |
| Maximum Pressure (PSI) | 79.33 PSI |
| Maximum Working Temperature (F) | 104°F |
| Minimum working temperature (F) | 32°F |
| Number of Impellers | 1 |
| Outlet Connection | Threaded female |
| Pack Size | 1 |
| Power Type Required | AC |
| Product Weight (lb.) | 51.81 lb. |
| Pump Switch Type | Pressure |
| Returnable | 30-Day |
| Vertical Lift (ft.) | 183 ft. |
| Voltage | 115v, 230v |
| Brand | LEO |
| GTIN | 850050634775 |
