Description
Spec SheetInstall Manual

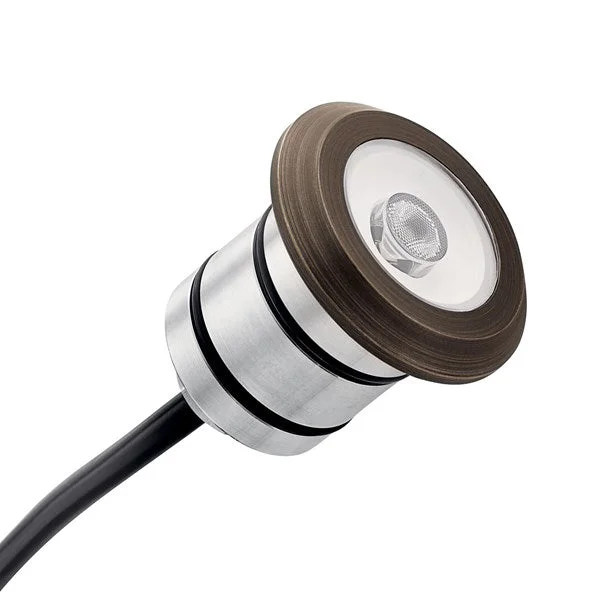

The 12V integrated LED All-Purpose Recessed fixture provides the performance and reliability you need for your next project or installation. This fully sealed and encapsulated fixture has 100 lumen output with a 2700K CCT, and comes in a Centennial Brass (CBR) finish. The three field changeable beam optics are included with each fixture: 20-, 40- (factory installed), and 75-degrees allow you to put light where you want it. A removable spring clip and compression sleeve adapt to a wide variety of applications for seamless installation. IP68 rated against dust and water ingression. Additional features include a 6000kV surge protection built-in to guard against power irregularities and a 9-15-volt operating range.
Mounting/Installation
- Lead Wire Length: 72″
- Location Rating: Wet
- Wire Connectors: Wire Nuts
Dimensions
- Height: 2.25″
- Width: 2.25″
Light Source
- Delivered Lumens: 100
- Expected Life Span (Hours): 50000
- Lamp Included: Integrated
- Light Source: LED
- Max or Nominal Watt: 2.00
- # of Bulbs/LED Modules: 1
- Max Wattage/Range: 1.5W
- Volt-Amperes (VA): 3.50
Product/Ordering Information
- SKU: 16140CBR27
- Finish: Centennial Brass
- UPC: 783927554909
Photometrics
- Color Rendering Index: 80
- Kelvin Temperature: 2700 K
- Delivered Efficacy (Lumens/Watt): 50
Electrical
- Operating Voltage Range: 9-15 VAC
- Voltage: 12 V
Housing
- Primary Material: Stainless Steel
Certifications/Qualifications
- Prop65: Yes
