Description

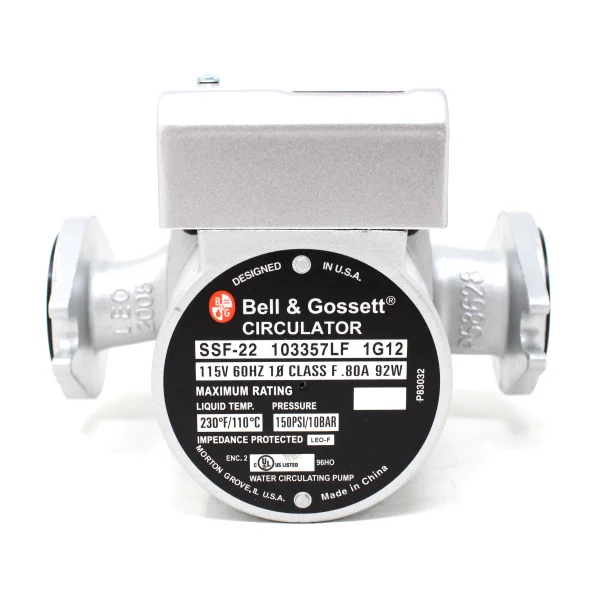

Bell & Gossett 103357 SSF-22 Stainless Steel Circulator Pump 1/25HP 1 Speed.
Product Features:
- Maintenance-free, stainless steel pump body.
- Flanged, union or sweat models available.
- High starting torque provides dependable start-ups.
- Unique B&G DuraGlide Bearing System assures whisper-quiet, maintenance-free operation
- Standard, universal flange-to-flange dimensions
- Backed by B&G’s representatives and a 3-year warranty–the best in the business
- DuraGlide Bearing System incorporates several components working together to eliminate seasonal freeze-up
- Low-watt, energy-conserving models
- Flanged and union system connection models are available
- Automatic Timer and Aquastat accessories are available.
Specifications:
| Product Section | Centrifugal Pumps & Accessories |
| Product Subsection | Close Coupled Pumps |
| Product Series | Series SSF |
| Model | SSF-22 |
| 103357LF | |
| Submittal ID | A-127L |
| RPM | 2940 |
| A-Dim | 4-7/8 (124) |
| B-Dim | 3-3/16 (81) |
| Connection | Flange 3/4, 1, 1-1/4, 1-1/2 |
| C-Dim | 3-3/16 (81) |
| D-Dim | 5-9/16 (141) |
| E-Dim | 3-11/16 (93) |
| F-Dim | 6-3/8 (162) |
| G-Dim | 3-3/16 (82) |
| CAD model unit system | inch/pound |
| AutoCAD / AutoCAD MEP support | https://dpk3n3gg92jwt.cloudfront.net/domains/bellgossett/ACIS_file_Import_Instruction.pdf |
| Download Revit File | https://dpk3n3gg92jwt.cloudfront.net/domains/bellgossett/revit_families/2021.01 NRF_NBF_SSF_LR Pumps.zip |
| Contact CAD Support | http://www.product-config.net/catalog3/bellgossett-support.jsp?id=103357LF |
| Adobe 3D PDF help | http://www.product-config.net/catalog3/help/3dviewerhelp.html |
| WATTS | 92 |
| F.L.AMPS | 0.80 |
| Approx.Shpg. Weight | 9.5 (4.3) |
