Description

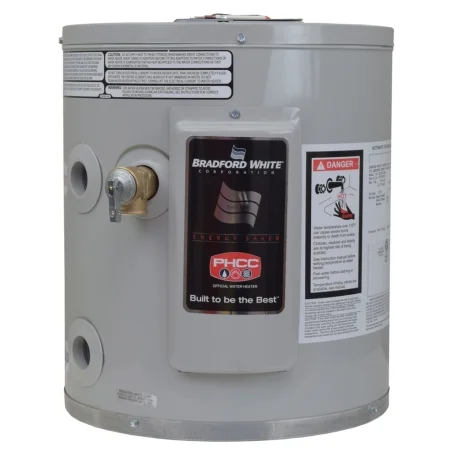

Bradford White RE120U6-1NAL model is a 19-gallon, compact (utility type) 120V electric hot water heater.
Features:
- Vitraglas enamel lining helps to extend tank life
- 1″ Non-CFC foam covers the sides and top of the tank, reducing heat loss
- Fully automatic fast acting surface-mount thermostat with high limit energy cut-off for safety
- Direct heat transfer with a single, 1-phase copper screw type immersion element
- Protective magnesium anode rod.
Technical Specifications:
- Capacity (Gallons): 19
- Recovery Rate (GPH) @ 120V (1500W): 10 GPH @ 60°F Rise, 8 @ 80°F, 7 @ 90°F, 6 @ 100°F, 5 @ 120°F
- Water Connections: 3/4″ NPT
- Max Working Pressure: 150 psi
- Voltage: 120V (1500W max)
- Electrical Specs: Single Heating Element, Single Phase, Non-Simultaneous Operation
- Dimensions (Diameter x Height): 18″ x 24-3/4″
- Weight (lbs): 65.
Warranty:
6-year limited tank warranties / 6-year limited warranty on components parts
